80-55-06 Ductile Iron As Cast

80-55-06 Ductile Iron As Cast
Chemical Composition
Carbon:             3.50%-3.90%
Silicon:              2.25%-2.75%
Manganese:        0.15%-0.35%
Phosphorus:        0.00%-0.05%
Sulfur:                0.006%-0.025%
Copper:               0.01%-0.70%
Smart Grid
GradeBuy FLATBuy ROUND
80-55-06 Ductile Iron As Cast

80-55-06 Ductile Iron As Cast

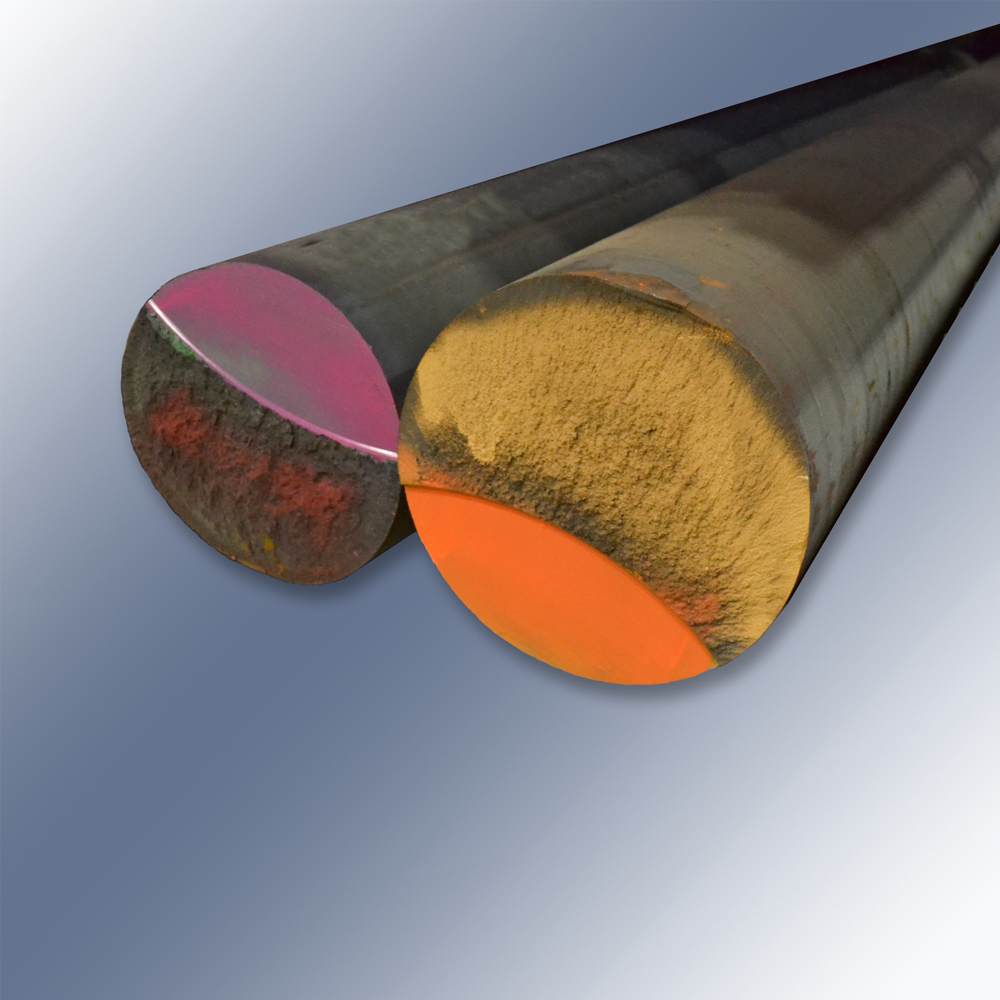

Alro stocks Dura-Bar® Type 80-55-06 As Cast Ductile Iron Bar. This Ductile Iron will contain nodular graphite in a matrix of ferrite and pearlite. The pearlite/ferrite structure provides higher wear resistance and strength when compared to a ferritic grade of ductile iron. This material will be readily machinable with good surface finishes. Tensile and yield strengths will be similar to AISI 1040 steel in the as-rolled condition. This grade conforms to ASTM A536 grade 80-55-06.

Properties
Tensile Strength:     80 KSI
Yield Strength:        55 KSI
Elongation:             6% (in 2")
Typical Uses
80-55-06 Ductile Iron is typically used in:
  • Shafts
  • Bearing Caps
  • Moldings
  • Sprockets
  • Gears
  • Screws
  • Couplings
  • Bushings
