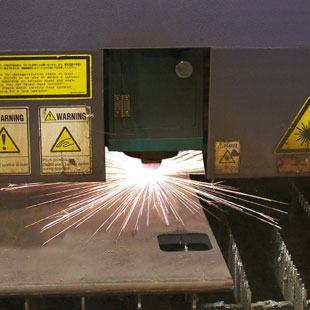

Plate Laser Cutting
|
|
- Laser tolerances in stainless, aluminum and carbon plate up to 1”,
up to 1/4" in red metals
- Maximum plate capacity 80” x 159”
- High precision and repeatability on cut parts
- Produces near net of finished products to your print
- Minimal heat affected zone
- Minimal to no clean-up
- Etching (not offered on red metals) and “stitch-cutting” available
- Potential secondary processes:
- Tapping from #10 - 3/4” and M5 - M12 available depending on size and thickness
- Forming
|

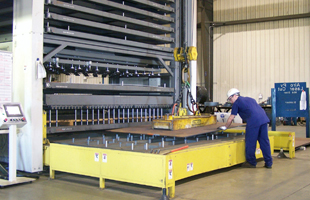

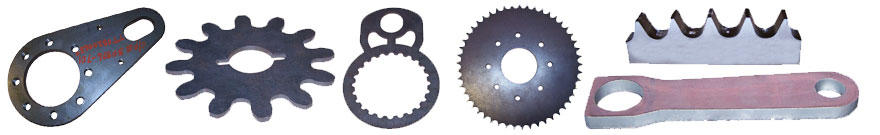

With a maximum plate capacity of 80” x 159”, Alro is able to cut a wide range of parts.

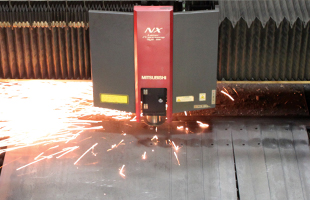

With its narrow kerf width, the plate laser is able to achieve better yields.

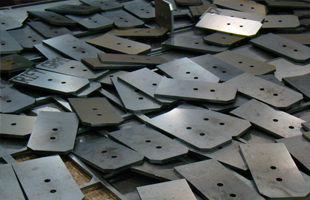

High precision and repeatability on cut parts make the plate laser ideal for production runs.
|
Grades |
Tolerance |
Minimum Hole Size |
Max Plate Capacity
|
Plate Laser
Acceptable Materials
|
1" Carbon
1" Stainless
1" Aluminum
1/2" CF Bar
1/2" Tool & Jig
1/4" Red Metals
|
1" = +/- .017
1/2" = +/- .008
1/4" and < = +/- .005
|
3/4" dia on 1"
9/16" dia on 3/4"
1/4" dia on 1/2"
3/16" dia on 1/4"
|
80" x 159"
|
Carbon = Yes
Stainless = Yes
Aluminum = Yes
Red Metals = Yes, no etching
|
This chart is a guideline only. For more specifc information, please contact your Alro representative. |
|
Alro has a fully integrated CAD Department to handle most file types:
Preferred Files: .dxf .dwg
|
Also Accepted:
.iges .asm .prt .dft .par .psm .pwd .step .X_B .X_T .sat model .iam .stp .ipt .dgn .sldasm .sldprt .stl
|
|
