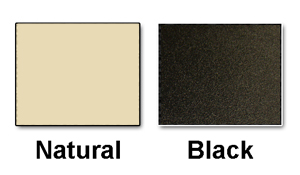

Colors/Grades:
Size and Availability:
Rod / Round:
- Diameters: ¼”dia to 8”dia
- Lengths: 4 ft and 8 ft standard
Sheet / Plate:
- Thickness: 1/16”thk to 6”thk
- Sheet size: 24” x 48” (all), 48”x 96” (up to 4” thick), 48”x 120” (1/4” to 4” thick)
Film:
- Thickness: .001”thk to .029” thick
- Roll width: 26” wide rolls standard
|
ABS, acrylonitrile-butadiene-styrene, is a low cost engineering plastic that is easy to machine and fabricate. ABS is an ideal material
for structural applications when impact resistance, strength, and stiffness are required. It is widely used for machining pre-production
prototypes since it has excellent dimensional stability and is easy to paint and glue.

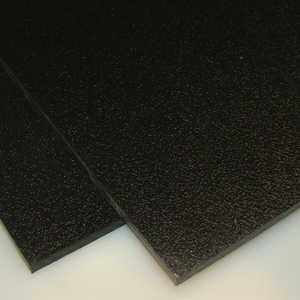

ABS is available in a smooth/smooth finish or with a haircell texture on one side. The haircell finish is similar to the
surface of an orange peel, giving it a little texture vs the smooth finish. ABS also works very well with the vacuum forming process and
is a preferred material.
Features:
- Excellent impact resistance
- Good machinability
- Excellent aesthetic qualities
- Easy to paint and glue
- Good strength and stiffness
- Vacuum formable
- FDA compliant grades
- Low cost
Applications:
- Machined prototypes
- Support blocks
|
- Structural components
- Housings Covers
|
|
