Processing Capabilities

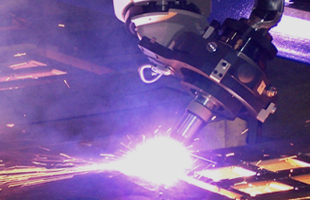

Our HPR 400 plasma cutting machine with bevel cutting capabilities.

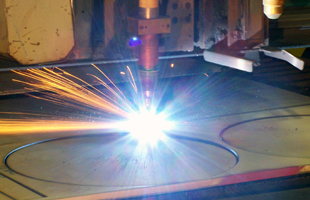

Plasma
Alro’s Plasma Cutting System provides tighter tolerances, minimizes machining on finished parts and provides greater part accuracy than standard flame cutting.
O2 Plasma means a smaller, heat affected zone and reduced edge cracking when forming.

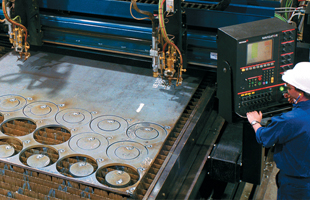

PC-based control technology increases control in shape cutting.
Advantages include:
High quality edge cuts
Higher precision than conventional plasma
Minimal clean up
Smaller kerf than conventional plasma
Small heat affected zone
Low cost per foot of cut
Max Plate Capacity
Material Capabilities
Tolerance
I.D. Sizes
Carbon
Stainless
Aluminum
Hi-Def Plasma
96 x 240
18 Ga. to 7 Ga.
125 X 614
125 X 614
1/8” overall
0.375 Min.
96 x 240
3/16" to 1/2"
3/16" to 1/2"
3/16" to 1/2"
1/8” overall
1-1/2 times
thickness PLT
Oxy/Plasma Torch
(2 torch)**
192 x 504
10 Ga. to 7 Ga.
10 Ga. to 7 Ga.
10 Ga. to 7 Ga.
1/8” overall
0.375 Min.
192 x 504
3/16" to 1-1/2"
3/16" to 1"
3/16" to 1"
1/8” overall
1-1/2 times
thickness PLT
Pac 500
125 X 614
31" to 12"
NA
NA
1”-2” thick = 1/8” overall
2”-3” thick = 1/4” overall
Plasma 1 x PLT
125 X 614
NA
1" - 5"
1" - 5"
1”-2” thick = 1/8” overall
2”-3” thick = 1/4” overall
Plasma 2 x PLT

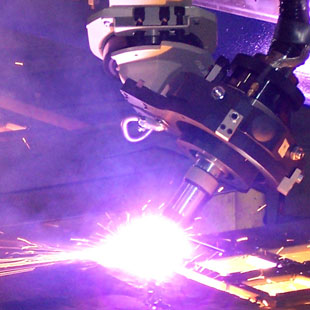

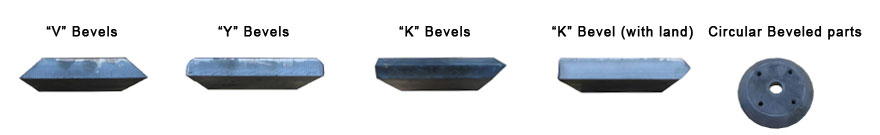

Our HPR 400 plasma cutting machine, with five axis bevel capabilities is capable of cutting 2” thick carbon plate with less than 1 degree bevel.
