Size and Availability:
Sheet / Slab stock:
- Thickness: 1/16”thk to 4”thk standard
- Sheet sizes: 48”x 120”, 48”x 96”, 48”x 48”, 36”x 48”
Rod / Solid Rounds:
- Diameters: 1/16” to 2-1/4”Dia.
- Lengths: 2 ft to 4 ft standard lengths
Tubing / Hollow Rounds:
- Diameters: 3/16”OD x 1/8”ID up to 2.50”OD x 1.50”ID
- Lengths: 2 ft to 4 ft standard lengths
|

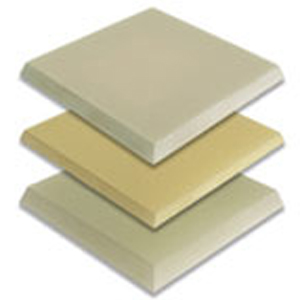

Phenolic G-10/FR4 is a continuous woven glass fabric laminated with an epoxy resin. This grade is extremely high in mechanical strength,
has low water absorption and dissipation factors and has superior electrical characteristics, which are exhibited over a wide range of
temperatures and humidities.
Grade G-10 is used for terminal boards, washers, sleeves, structural components, and parts where the strength to size ratio is critical.
Phenolic G-10/FR4 complies with the requirements of MIL-1-24768/27, Type GEE-F.
Features:
- Extremely high mechanical strength
- Low water absorption
- Superior electrical characteristics
Applications:
- Terminal boards
- Washers
- Sleeves
- Structural components
|
