Maximum
Plate Sizes |
Carbon
Sizes |
Material
Tolerances |
Minimum
Hole Size
|
Carbon
|
Stainless
|
Aluminum
|
Red
Metals
|

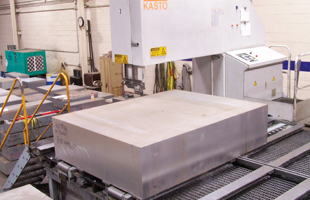

Precision
Plate Saw
|
063" thick (min)
12.00" thick (max)
Width = 144"
Length = 144"
|

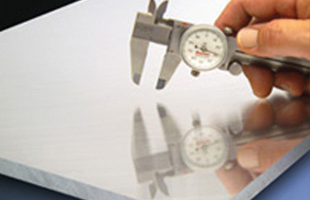

Thickness:
Standard = +/- 1/16"
Precision = +/- .005" for <2" thick &
dimensions <30"
|
N/A
|
No
|
No
|
Yes
|
Yes
|
Mold
Plate Saw
|
<8" thick x 144" x 144"
8" up to 30" thick
x 64" wd x 150" lg
|
Under 5" thick = +/- .015"
5" to 8" thick = 1/8"
Over 8" thick = 1/4"
|
N/A
|
No
|
No
|
Yes
|
Yes
|

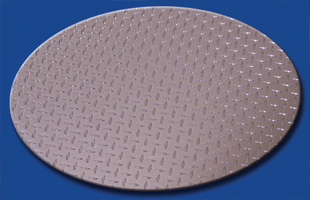

Circle Saw
|
6" thick, 60" OD (max)
8" thick, 43" OD (max)
Min OD all thickness
is 10-3/8" dia.
|
< 24" OD = 1/16"
>24 OD = 1/8"
|
10.25"
|
No
|
No
|
Yes
|
Yes
|
This chart is a guideline only. For more specifc information, please contact your Alro representative. |
