Colors/Grades:
- Polyply #L50, NEMA Grade GPO-3, Red (color), # E82624
Size and Availability:
Sheet:
- Thickness: 1/32”thk to 1”thk, standard increments
- Sheet sizes: 48”x 96” and 36”x 72”
|

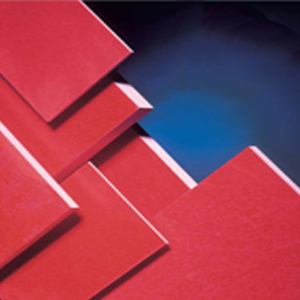

Alro Plastics is now a stocking distributor of GPO-3 Electrical Grade sheet laminates. All grades of our Electrical Grade sheet laminates
are produced using polyester resin and fiberglass reinforcement. They are U.L. recognized and are available in 36" x 72" and 48" x 96" sheet.
Sheets are manufactured in thickness ranging from 1/32 to 1 thick with most sizes in stock for immediate shipment.
Track resistant, flame retardant laminate which meets or exceeds NEMA GPO-3 requirements.
U.L. Recognition File Number: Polyply #L50, NEMA Grade GPO-3, Red (color), # E82624
Features:
- Electrical insulation
- Track resistance
- Self extinguishing UL94 (V-0)
- Chemical resistance
- Low smoke
- Low conductivity
- Impact and Abrasion resistant
- Good mechanical strength
Applications:
- Phase and End barriers
- Insulating supports
- Bus bar supports
- Mounting panels in switch gears
- Transformers
- Antenna bases
- Spacers
|
