Colors/Grades:
Size and Availability:
Thicknesses: 2mm, 3mm, 4mm and 6mm – 3mm & 4mm commonly stocked
Thickness Tolerance: +/-.008” for 4mm and under; +/-.012” for 6mm
Standard Widths: 40" 48" 50" 51” 62"; Custom Widths may be available.
Length: 6'– 24'
Bow Maximum: 0.5% of length and/or width.
Squareness Maximum: 0.2" (5mm)
Custom Production: 1,000 sq ft minimum - Provides flexibility in custom colors or custom sizes/cores
|
ALPOLIC® aluminum composite materials (ACM) are produced by continuously bonding two thin sheets of aluminum on either side of an extruded thermoplastic or mineral-filled,
fire-retardant thermoplastic core. The aluminum surfaces have been pre-finished and coil-coated in a variety of paint finishes before bonding.
We also offer metal composite materials (MCM) featuring skins of copper, zinc, stainless steel, or titanium bonded to the same cores and left unfinished.
ALPOLIC® ACM and MCM both offer the rigidity of heavy-gauge sheet metal in a lightweight composite material.
ALPOLIC® can be fabricated with ordinary woodworking or metalworking tools, with no special tools required. Cutting, grooving, punching, drilling, bending,
rolling and many other fabrication techniques can be easily performed to create a virtually unlimited variety of complex forms and shapes.
ALPOLIC finishes include but are not limited to Micas, Metallics, Reflective, Prismatics, Timber Series, Stone, and other patterns.
ALPOLIC GRAPHIC-AL & GRAPHIC-AL DP grades are available for the signage and display industry. They offer thinner skins than standard APOLIC ACM ideal for business signs,
wayfinding, and displays.
Features:
- Lightweight
- Superior flatness
- Durable
- Standard polyethylene core or fire-retardant core
- Ease of Fabrication
- Ease of Maintenance
- Broad range of colors and finishes using Lumiflon® FEVE or Kynar® PVDF resin; significantly more resistant to impact, abrasion, weather, and chemicals.
- Primed Both Sides of Skin - Inhibits oxidation and white rust that can adversely affect paint and core adhesion.
- Versatile Corporate ID color program
- Strongest Warranty - Covers both material AND labor to execute warranty. In Situ is unique to ALPOLIC.
Applications:

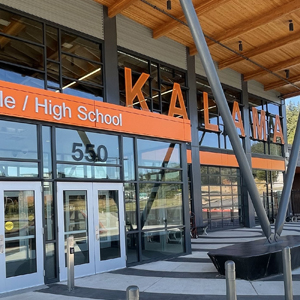

- Architectural/Building Cladding
- Canopies & Entryways
- Fascia
- Signage, Exhibits & Displays
- Column Covers
- Enclosures & Partitions
|
