Colors/Grades:
- Other colors are available by special request.
- Surface finish: With Grit or without
Size and Availability:
- Thickness: 1”thk x 1-1/2” square
- Thickness: 1-1/2”thk x 1-1/2” square
- Thickness: 2”thk x 2” square
- Thickness: 1”thk x 4” rectangular
- Sheet widths: 3 ft, 4 ft, and 5 ft wide
- Sheet lengths: 8 ft, 10 ft, 12 ft
|

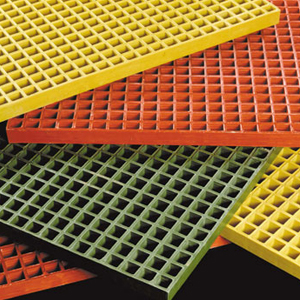

Duragrate® molded fiberglass grating is the chemical resistant flooring choice for many industrial applications. The high resin content
(65%) provides long, maintenance-free performance. Molded grating is composed of fiberglass rovings combined with a thermosetting resin
series, designed for different environments and applications:
- VE-a premium grade vinyl ester, for high chemical resistance
- XVE-a premium grade vinyl ester, with extra fire resistance (a flame spread rating of 10 or less)
- PP-an all-purpose isophthalic polyester for industrial applications
- GP-a general purpose orthophthalic polyester for architectural or other applications with less corrosion problems
- FF-an economical isophthalic polyester for food processing or similar applications
Features:
- Corrosion resistant
- High impact and fatigue strength
- Lightweight, low maintenance
- Non-conductive
- Resistant to chipping and cracking
- Easy to fabricate
Applications:
- Walkways, platforms and decking
- Chemical / Petrochemical plants
- Pulp and paper plants
- Mass transit systems
- Food & Beverage operations
|
