Size and Availability:
Sheet / Slab stock
- Thickness: 1/16”thk to 2”thk
- Sheet size: 24” x 48” standard
- Sheet size: 24”x 144” available for 1/4”thk and 3/8”thk
Rod / Round stock
- Diameter: 3/16”dia to 2”dia
- Lengths: 8 foot standard
Tubing / Bushing stock
- Diameter: 1/2”O.D. to 2”O.D. (wall thick 1/16” to 1/4"thk)
- Lengths: 8 foot standard
|
Nylatron® is a registered trade name of Quadrant EPP. The Nylatron® product line features a variety of materials designed to excel in specific
applications. Please read below on each specific Nylatron® product for more information.

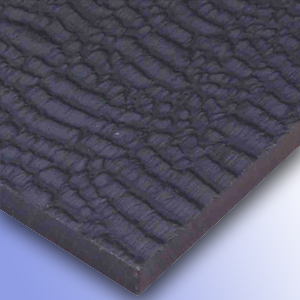

Nylatron® GS (extruded nylon) is a molybdenum disulphide (MoS2) filled nylon offering improved strength and rigidity. With a lower coefficient of
linear thermal expansion than Nylon 101, Nylatron GS parts maintain better fit and clearances, and have less tendency to seize as bearings.
Features:
- Broadest size range availability
- Good mechanical and electrical properties
- Ideal balance of strength & toughness
- Improved load bearing properties
Applications:
- Gears, sprockets, star wheels
- Bushings and bearings
- Wear pads, rails and strips
- Pulleys, sheaves and guides
- Conveyor wheels
- Rollers and sleeves
- Supports and rubbing blocks
- Valve seats and seals
|
