Size and Availability:
Sheet / Slab stock
- Thickness: 1/4” to 24” thick
- Sheet sizes: 20” x 60”, 24” x 60”, 30” x 80”, 45” x 60”
48” x 96”, 48” x 120”, 60” x 96”, 60” x 120”
- Densities: 4lb, 6lb, 8lb, 10lb, 12lb, 15lb, 18lb, 20lb, 30lb
34lb, 40lb, 48lb, 60lb, 70lb and 75lb.
- Sheet color: Off-White
|

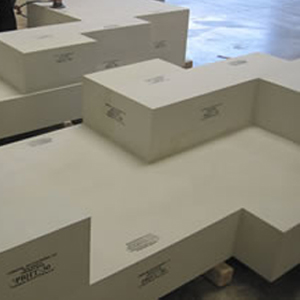

Precision Board Plus High Density Urethane is a “closed cell” rigid polyurethane product. It is available in a wide range of standard sheet sizes and standard densities
and can be cut or bonded into a variety of shapes for final machining and shaping. Precision Board Plus is made from 23.9% rapidly renewable
resources, with a carbon footprint of 3:1, so you can be confident that one of the most dimensionally stable substrates for a variety of tooling
applications is also an environmentally friendly one.
Precision Board Plus is available in two grades, PBLT (Low Temperature) and PBHT (High Temperature). PBLT is designed for applications that are 200oF and below while PBHT
is designed for applications 200oF and above.
Features:
- Less dust, more chips for better working environment
- Does not out-gas and will not affect prepreg cure
- Closed cell structure – Won’t absorb anything
- Easily cut or machined with standard cutting tools
- Meets flammability burn test requirements of ASTM D-1692-74, Far 25.853, Mil-P-26514 & ASTM D635
Applications:
- Prototype machining
- Thermoforming
- Tool proofing
- Master model making
- Pattern making
- Vacuum form tooling
- Sculptures & Carvings
Materials Selection Guide:
Precision Board Plus Materials Selection Guide
|
