Size and Availability:
Sheet / Slab stock
- Thickness: 1/16”thk to 4”thk standard
- Sheet sizes: 48”x 120”, 48”x 96”, 48”x 48”, 36”x 48”
Rod / Solid Rounds
- Diameters: 1/16” to 2-1/2”Dia.
- Lengths: 2 ft to 4 ft standard lengths
Tubing / Hollow Rounds
- Diameters: 3/16”OD x 1/8”ID up to 2.50”OD x 1.50”ID
- Lengths: 2 ft to 4 ft standard lengths
|

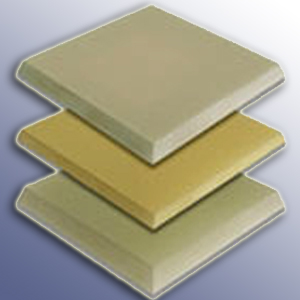

Phenolic G-11 (NEMA G-11) is a high performance thermoset epoxy fiberglass composite that provides higher strength than similar products. Phenolic G-11
offers excellent physical, mechanical, and electrical properties at both room temperature and elevated temperatures. Phenolic G-11 is chosen over
high-temperature mat glass thermoset composites and high performance glass-filled thermoplastics because of its excellent machining characteristics,
outstanding dimensional stability, superior creep resistance, and excellent high-temperature and performance characteristics.
The product is considered the premier material for use as Class F insulation in electrical power generation and transmission equipment. Phenolic G-11
complies with the requirements of MIL-1-24768/3, Type GEB.
Features:
- Extremely high mechanical strength
- Low water absorption
- Superior electrical characteristics
Applications:
- Terminal boards
- Washers
- Sleeves
- Structural components
|
