Size and Availability:

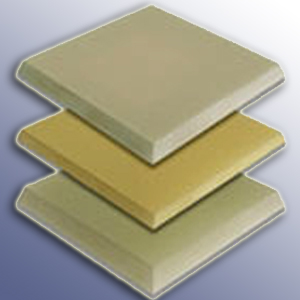

Sheet / Slab stock
- Thickness: 1/16”thk to 2”thk standard
- Sheet sizes: 48”x 120”, 48”x 96”, 48”x 48”, 36”x 48”
Rod / Solid Rounds
- Diameters: 1/16” to 2-1/4”Dia.
- Lengths: 2 ft to 4 ft standard lengths
Tubing / Hollow Rounds
- Diameters: 3/16”OD x 1/8”ID up to 2.50”OD x 1.50”ID
- Lengths: 2 ft to 4 ft standard lengths
|
Phenolic G-7 is a continuous glass fabric laminated with a silicone resin. Grade G-7 is unequalled for high heat and arc resistance
applications, and where good mechanical and electrical properties must be exhibited in humid conditions in excess of 500°F.
Phenolic G-7 complies with the requirements of MIL-1-24768/17, Type GSG
Features:
- Extremely high mechanical strength
- Low water absorption
- Superior electrical characteristics
Applications:
- Terminal boards
- Washers
- Sleeves
- Structural components
|
