Oxy-Fuel Cutting
|
|
Alro offers oxy-fuel cut pieces (rectangles, ID, OD and per print items) to customer specifications. Our CNC machines allow us to oxy-fuel carbon plate up to 14" thick. Some advantages of oxy-fuel cutting include:
- Thick material capability
- Good edge quality
- In-house stress-relieving, normalizing, and annealing
|

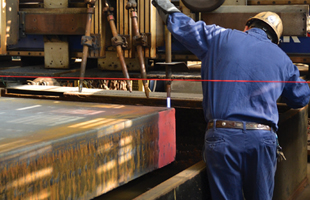

Parts and shapes cut to
customer-supplied print specifications

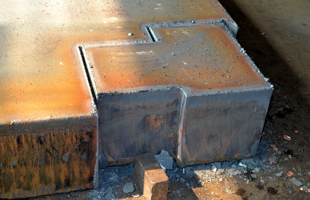

Alro can provide flame cut parts
up to 14" thick

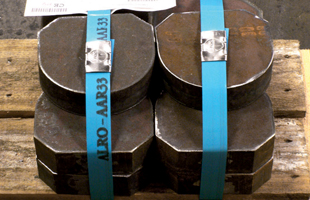

Edges ground on all flame cut pieces
to deburr them for safer handling
|
Thickness
Range |
Maximum Table
Cutting Capacity |
Overall Tolerance
by Thickness |
Minimum
Hole Size
|
Materials
|
1/4" thick
up to
14" thick
|
Up to 120" x 600"
*Dependent on plate thickness
|
Less than 2" thick = 1/8"
2" to <4" = 3/16"
4" to <8" = 1/4"
8" to <10" = 5/16"
10" to <12" = 1/2"
|
Minimum hole size
equal to thickness
of the plate
|
Carbon
|
This chart is a guideline only. For more specifc information, please contact your Alro representative. |
|
Alro has a fully integrated CAD Department to handle most file types:
Preferred Files: .dxf .dwg
|
Also Accepted:
.iges .asm .prt .dft .par .psm .pwd .step .X_B .X_T .sat model .iam .stp .ipt .dgn .sldasm .sldprt .stl
|
|
