Tube Laser Cutting
|
|
- Up to 24” diameter x 50 feet long
- Miter cut, top notch and slot holes
- Tabs, etching, pipe joints and more
- High quality cut and parts repeatability
- Tapping from #10 - 3/4” and M5 - M20
- Reduce assembly time by eliminating need for: sawing, fixtures, milling, drilling, punching, bending, and welding
|

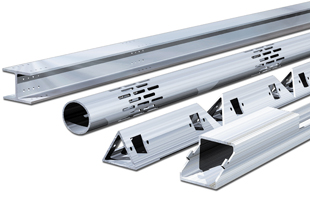

Highly detailed laser cut parts to print
from round tube stock

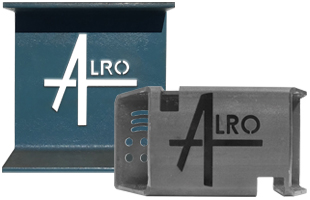

Laser cut samples pieces cut
from I-beam and rectangular tubing
Alro has the capability to laser cut
a wide variety of metal shapes.
|
Round Tube |
Square Tube |
Rectangular Tube |
I‑Beam &
WF‑Beam
|
Channel & Angle
|
Grades |
Maximum |
Bevel |
1/2" dia.
up to
24" dia.
|
1/2" sq.
up to
16" sq.
|
1/2" sq.
up to
12" x 20" sq.
|
7/8"
up to
18" @ 65#
|
1"
up to
15" @ 50#
|
Carbon Steel
Stainless Steel
Aluminum
|
3/4" wall
1/2" wall
1/4" wall
|
45° max
20° max
0°
|
This chart is a guideline only. For more specifc information, please contact your Alro representative. |
|
Alro has a fully integrated CAD Department to handle most file types:
Preferred Files: .dxf .dwg .prt .sldprt
|
Also Accepted:
.iges .asmt .dft .par .psm .pwd .step .X_B .X_T .sat model .iam .stp .ipt .dgn .sldasm .stl
|
|
|
