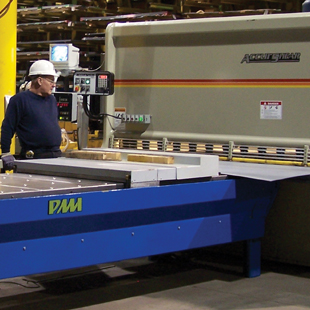

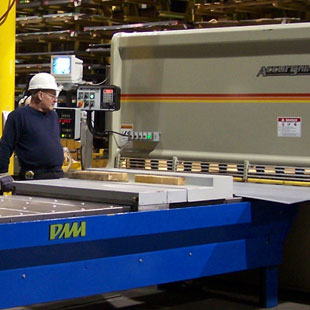

AccurShear with 144" x 144" plate capacity
|
Shearing
|
|
Shearing sheet metal and plate steel is performed in most of Alro’s steel warehouses. We’ll shear your order to your exact specifications, place your material on a skid for safe transporting and safe handling after your order is delivered to your specified location.
We are capable of shearing plate up to 1/2" thick. Thickness capacities vary depending on the grade of the material. Please inquire.
|

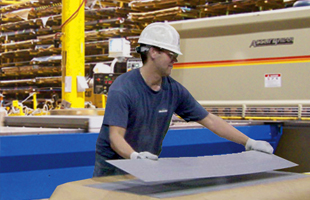

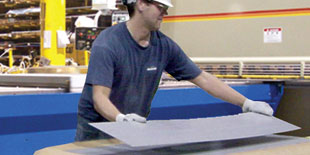

Alro will shear to your specifications or shear to a desired length for handling

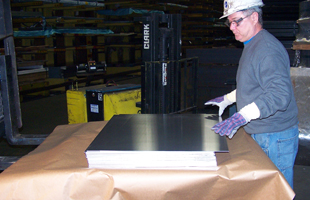

Sheared products are wrapped for protection and skidded for delivery

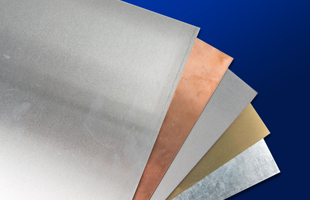

Alro can shear a wide range of metals. See chart below for specifications.
|
Materials |
Material
Grades |
Minimum
Thickness |
Maximum
Thickness
|
Max Plate
Capacity
|
Tolerance
|
Aluminum |
3003, 5052 & 6061 |
20 gauge |
1/2" thick |
144" x 144" |
1/8" |
Aluminum |
Floor Plate |
20 gauge |
3/8" thick |
144" x 144" |
1/8" |
Aluminum |
2024 & 7075 |
20 gauge |
1/8" thick |
144" x 144" |
1/8" |
Carbon |
Mild Carbon Steel |
20 gauge |
1/2" thick |
144" x 144" |
1/8" |
Carbon |
Floor Plate |
20 gauge |
3/8" thick |
144" x 144" |
1/8" |
Carbon |
Medium Carbon |
20 gauge |
1/4" thick |
144" x 144" |
1/8" |
Carbon |
AR 235 Plate |
20 gauge |
1/4" thick |
144" x 144" |
1/8" |
Carbon |
AR400 Plate |
20 gauge |
3/16" thick |
144" x 144" |
1/8" |
--- |
Expanded Metal |
20 gauge |
9 gauge |
144" x 144" |
1/8" |
Stainless |
Stainless |
20 gauge |
1/4" thick |
144" x 144" |
1/8" |
Stainless |
Floor Plate |
20 gauge |
3/16" thick |
144" x 144" |
1/8" |
Red Metals |
Red Metals |
20 gauge |
1/2" thick |
144" x 144" |
1/8" |
This chart is a guideline only. For more specifc information, please contact your Alro representative. |
|
|
