Tube Cutting & Chamfering
|
|

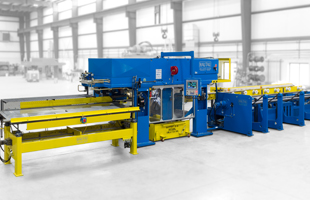

The Alro Tube Cutoff System is a precision cutting and chamfering
machine with production speeds. This machine is capable of cutting tube
stock from 0.750" OD up to 6.700" OD and wall thicknesses from .049" up
to 1.000".
The Tube Cutoff System is also capable of chamfering BOTH ends, inside
and outside, in a single operation. By doing the cutting and chamfering in
a single operation, Alro is able to quickly and accurately produce finished
pieces. Advantages:
- ID/OD chamfers, BOTH ends
- Precision tolerances (+/- .005")
- Production speeds
- Capable of 60° OD weld prep
|

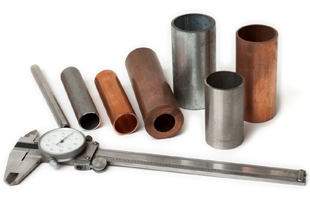

Alro can cut and chamfer tubing
from 0.750" up to 6.700" diameter

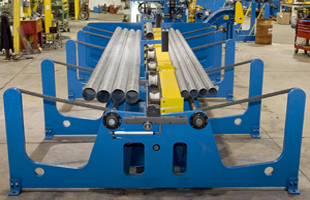

Automated bundle loaders feed the cutoff machine to keep it running parts non-stop.
Alro can cut and chamfer a wide range of metals, see chart below for specific metals.
|
O.D. Size
Capabilities |
Wall
Thickness |
Minimum
Cut Length |
Precision
Tolerances
|
Standard
Bevel Features
|
Special
Feature
|
Acceptable
Materials
|
0.750" dia.
up to
6.700" dia.
|
.049" thick
up to
1.000" thick
|
0.750" long
|
+/- .005"
|
30°, 40°, 45°
*Actual size of
30° bevel is 27.5°
|
Capable of
60° weld prep
|
Carbon Steel • Stainless Steel
Aluminum • Brass • Bronze
Copper • Alloys
|
|
This chart is a guideline only. For more specifc information, please contact your Alro representative. |
|
|
|
